WEIJIA WHOLESALE

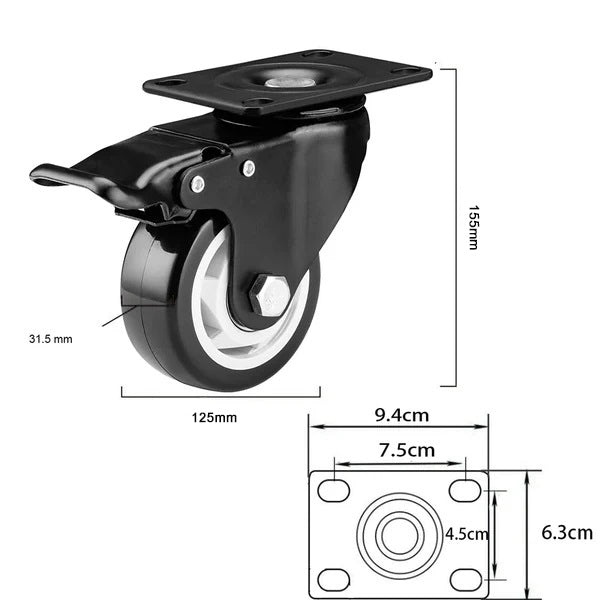

BLACK PU CASTOR 1.5" 2" 3" Swivle Plate Brake BOLT

BLACK PU CASTOR 1.5" 2" 3" Swivle Plate Brake BOLT

$2.20
$2.20
Sale Sold out
Shipping calculated at checkout.
  • 🟠 PU Polyurethane — Non-marking
  • 92–95 Shore A hardness
  • 8× abrasion resistance vs rubber
  • Double bearing — whisper quiet
  • -30°C to +70°C rated
  • Chemical & oil resistant
  • 5 sizes · 5 mount types

Common Specifications (All Sizes)

Material
PU Polyurethane
Color
BLACK
Wheel Width
Depends on Size
Bearing
Double Bearing
Hardness
92–95 Shore A
Temp Range
-30°C to +70°C
Floor Type
All floors, Non-marking
Noise Level
Quiet — Vibration absorption
Chemical Resistance
Excellent (oils, greases)
Abrasion Resistance
8× better than rubber

Size & Configuration Specifications

Specification Fixed Swivel Swivel+Brake Bolt Mount Bolt+Brake
Core Design Solid Core (High Load Capacity)
Wheel Diameter 38mm
Overall Height 68mm
Plate Size 60 × 43mm —
Hole Spacing 45 × 33mm —
Bolt Spec — M8 × 25mm
360° Swivel No Yes Yes Yes Yes
Brake No No Yes No Yes
Load Capacity 40 kg
Unit Weight 0.22kg 0.35kg 0.42kg 0.18kg 0.38kg
Specification Fixed Swivel Swivel+Brake Bolt Mount Bolt+Brake
Core Design Solid Core (High Load Capacity)
Wheel Diameter 50mm
Overall Height 80mm
Plate Size 68.5 × 49mm —
Hole Spacing 55 × 30mm —
Bolt Spec — M10 × 25mm
360° Swivel No Yes Yes Yes Yes
Brake No No Yes No Yes
Load Capacity 50 kg
Unit Weight 0.30kg 0.45kg 0.52kg 0.25kg 0.48kg
Specification Fixed Swivel Swivel+Brake M12 Bolt M12+Brake
Core Design Hollow Core (Lightweight)
Wheel Diameter 75mm
Overall Height 108mm
Plate Size 64 × 92mm —
Hole Spacing 75 × 45mm —
Bolt Spec — M12 × 25mm
360° Swivel No Yes Yes Yes Yes
Brake No No Yes No Yes
Load Capacity 80 kg
Unit Weight 0.35kg 0.50kg 0.58kg 0.30kg 0.53kg
Specification Fixed Swivel Swivel+Brake M12 Bolt M12+Brake
Core Design Hollow Core (Lightweight)
Wheel Diameter 100mm
Overall Height 133mm
Plate Size 64 × 92mm —
Hole Spacing 75 × 45mm —
Bolt Spec — M12 × 25mm
360° Swivel No Yes Yes Yes Yes
Brake No No Yes No Yes
Load Capacity 100 kg
Unit Weight 0.45kg 0.60kg 0.68kg 0.40kg 0.63kg
Specification Fixed Swivel Swivel+Brake M12 Bolt M12+Brake
Core Design Hollow Core (Lightweight)
Wheel Diameter 125mm
Overall Height 155mm
Plate Size 64 × 92mm —
Hole Spacing 75 × 45mm —
Bolt Spec — M12 × 25mm
360° Swivel No Yes Yes Yes Yes
Brake No No Yes No Yes
Load Capacity 120 kg
Unit Weight 0.55kg 0.72kg 0.82kg 0.50kg 0.77kg

Suitable Applications

Light Industrial Manufacturing Food Service Healthcare Retail Office Equipment
