Size Range: 6mm to 25mm diameter · Yellow Pin for easy identification
Australian Stock · Fast Dispatch · SAE Stamped

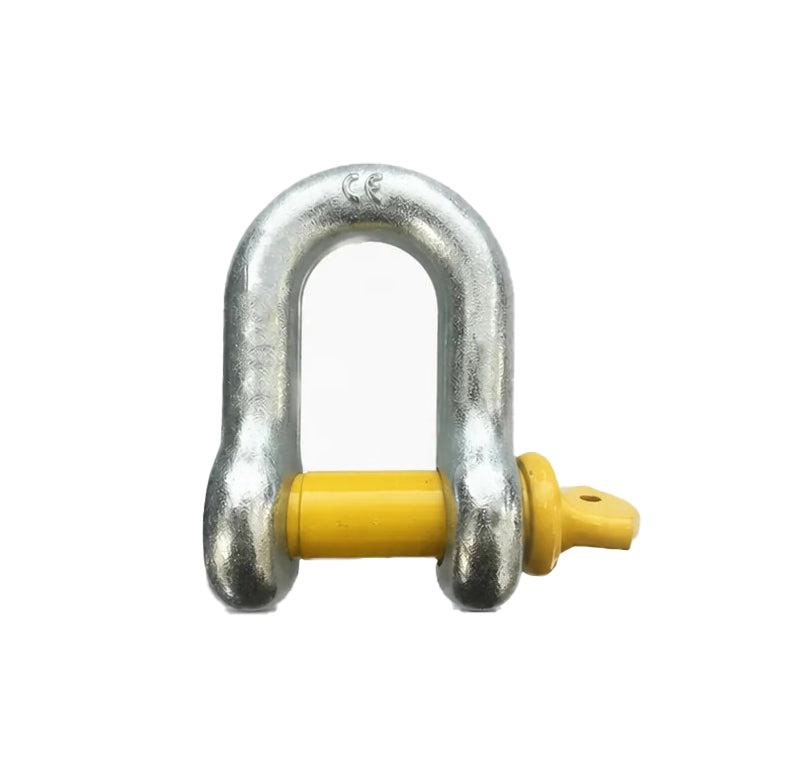

Heavy Duty D Shackle (Dee Shackle)
Straight Line Loading Design · 6–25mm
CE Certified high-strength steel D shackles for straight-line towing, lifting, and industrial applications. Yellow pin for easy identification. SAE stamped.
Find Your Size — Select Your Shackle
Product Description — Heavy Duty D Shackle (Dee Shackle)
Our D Shackles (Dee Shackles) are precision-engineered for straight-line loading applications where maximum strength and efficiency are required. The distinctive "D" shape provides optimal load distribution when pulling in a straight line — making these shackles the preferred choice for chain connections, towing bars, and industrial lifting where side loading is not expected.
Manufactured from high-strength steel with a corrosion-resistant coating, each shackle features a distinctive yellow pin for easy identification and operation. The SAE stamped markings confirm compliance with industry standards, while CE Certification provides assurance of safety and quality.
⚠️ IMPORTANT: D shackles are designed for straight-line loading only. Never apply side loads or angular loads to D shackles. Available in sizes from 6mm to 25mm diameter. Never exceed the shackle's rated Working Load Limit (WLL).
🔧 Key Features & Benefits
Bow Shackle vs D Shackle — Which One Do You Need?
| Feature | Bow Shackle | D Shackle (This Product) | |
|---|---|---|---|
| Shape | Rounded "Bow" shape | Narrow "D" shape | |
| Best For | Multi-angle loading, side pulls | Straight-line loading only | |
| Load Direction | Accepts loads from multiple angles | In-line axial loads only | |
| Typical Use | Recovery, rigging, multi-directional pulls | Chain links, towing bars, straight pulls | |
| Interior Space | Larger — accommodates multiple connections | Smaller — single connection, chain links |
| Metric Size (mm) | Inch Equivalent (approx) | Typical Applications | Working Load Limit (WLL) |
|---|---|---|---|

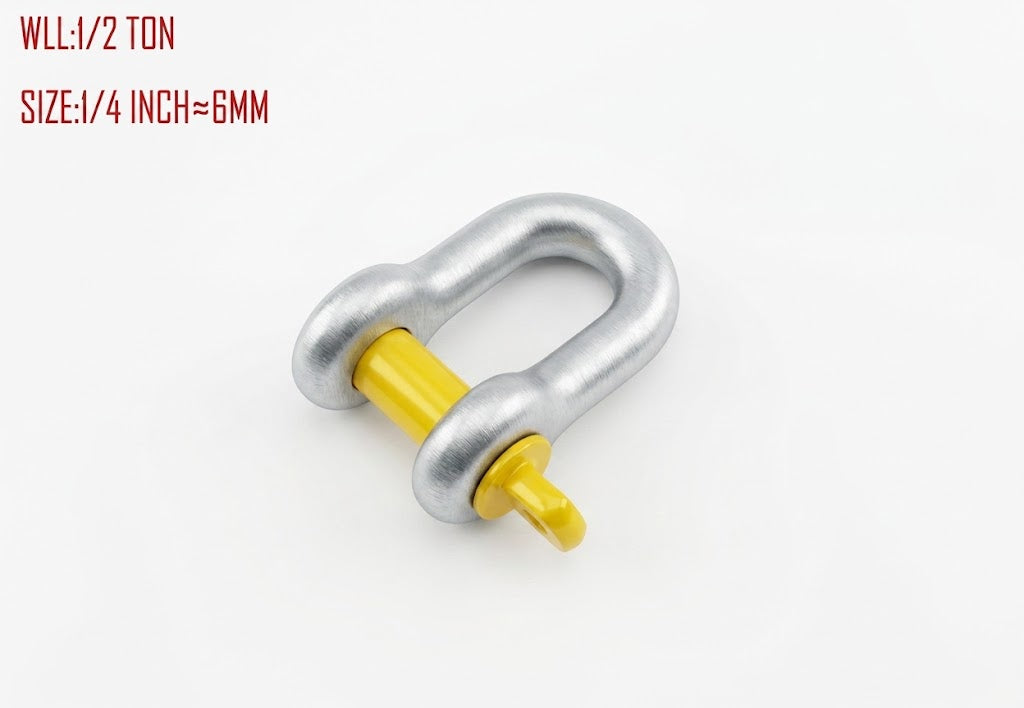

| 6mm | 1/4" | Light chain connections, small trailer towing, light straight pulls | — kg |
| 8mm | 5/16" | 4WD recovery straps, medium chain links, general towing | — kg |
| 10mm | 3/8" | SUV recovery, boat trailer chains, light industrial lines | — kg |
| 11mm | 7/16" | Heavy 4WD recovery, caravan chains, load securing lines | — kg |
| 12.5mm | 1/2" | Industrial chain connections, towing bars, straight-line lifting | — kg |
| 16mm | 5/8" | Heavy machinery chains, industrial towing, marine lines | — kg |
| 19mm | 3/4" | Large equipment chains, shipping connections, offshore lines | — kg |
| 22mm | 7/8" | Heavy marine chains, ship towing lines, large construction | — kg |
| 25mm | 1" | Industrial heavy chains, large vessel towing, mining lines | — kg |
| Size Range | 6mm, 8mm, 10mm, 11mm, 12.5mm, 16mm, 19mm, 22mm, 25mm diameter |
| Type | D Shackle / Dee Shackle — Straight line loading design |
| Material | High-strength steel with corrosion-resistant coating |
| Pin Color | 🟡 Yellow — High visibility for safety and easy identification |
| Certification | ✅ CE Certified — Safety and quality assurance |
| Markings | SAE Model Stamped — Industry standard compliance |
