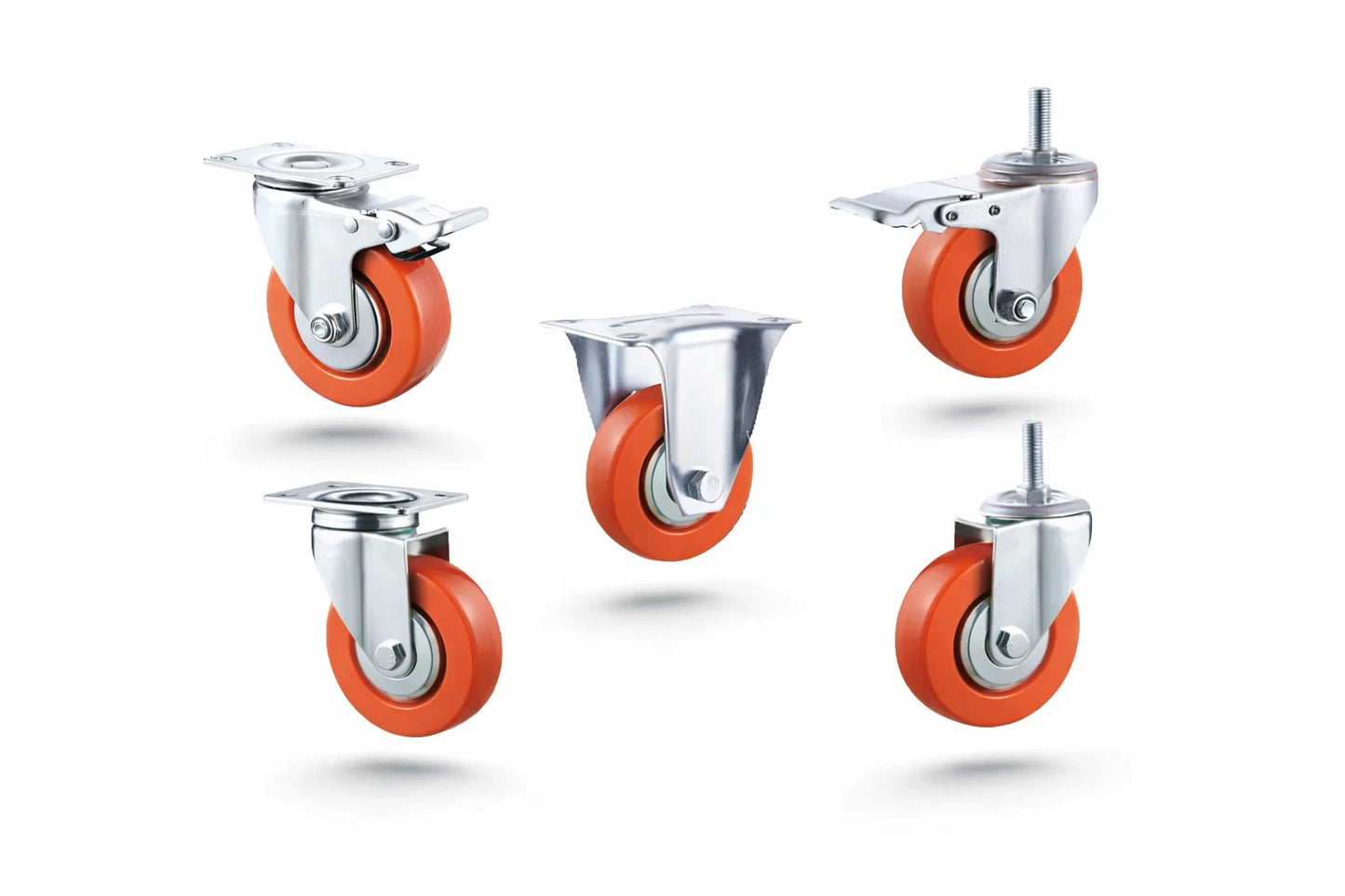

RED PU CASTOR 3" 4" 5" Swivle Plate Brake BOLT

RED PU CASTOR 3" 4" 5" Swivle Plate Brake BOLT

$6.99
$6.99
Sale Sold out
Shipping calculated at checkout.
  • 🟠 PU Polyurethane — Non-marking
  • SILVER COVER — Lightweight Design
  • 92–95 Shore A hardness
  • 8× abrasion resistance vs rubber
  • Double bearing — whisper quiet
  • -30°C to +70°C rated
  • Chemical & oil resistant
  • 3 sizes · 5 mount types

Common Specifications

Material
PU Polyurethane
Core Design
Silver Cover  (Lightweight)
Color
RED
Wheel Width
32mm
Bearing
Double Bearing
Plate Size (plate types)
64 × 92mm
Hole Spacing (plate types)
75 × 45mm
Bolt Spec (bolt types)
M12 × 30mm
Hardness
92–95 Shore A
Temp Range
-30°C to +70°C
Floor Type
All floors, Non-marking
Noise Level
Quiet — Vibration absorption
Chemical Resistance
Excellent (oils, greases)
Abrasion Resistance
8× better than rubber

Size & Configuration Specifications

Specification Fixed Swivel Swivel+Brake M12 Bolt M12+Brake
Wheel Diameter 75mm
Overall Height 108mm
360° Swivel No Yes Yes Yes Yes
Brake No No Yes No Yes
Load Capacity 80 kg
Unit Weight 0.35kg 0.50kg 0.58kg 0.30kg 0.53kg
Specification Fixed Swivel Swivel+Brake M12 Bolt M12+Brake
Wheel Diameter 100mm
Overall Height 133mm
360° Swivel No Yes Yes Yes Yes
Brake No No Yes No Yes
Load Capacity 100 kg
Unit Weight 0.45kg 0.60kg 0.68kg 0.40kg 0.63kg
Specification Fixed Swivel Swivel+Brake M12 Bolt M12+Brake
Wheel Diameter 125mm
Overall Height 155mm
360° Swivel No Yes Yes Yes Yes
Brake No No Yes No Yes
Load Capacity 120 kg
Unit Weight 0.55kg 0.72kg 0.82kg 0.50kg 0.77kg

Suitable Applications

Industrial Manufacturing Food Service Healthcare Retail
