⚠️ IMPORTANT ORDERING INFORMATION ⚠️
150mm (6") Heavy Duty Swivel Caster — Solid Rubber Wheel · 300kg Load Capacity
Price is for 1 caster only. Please select model and quantity above.

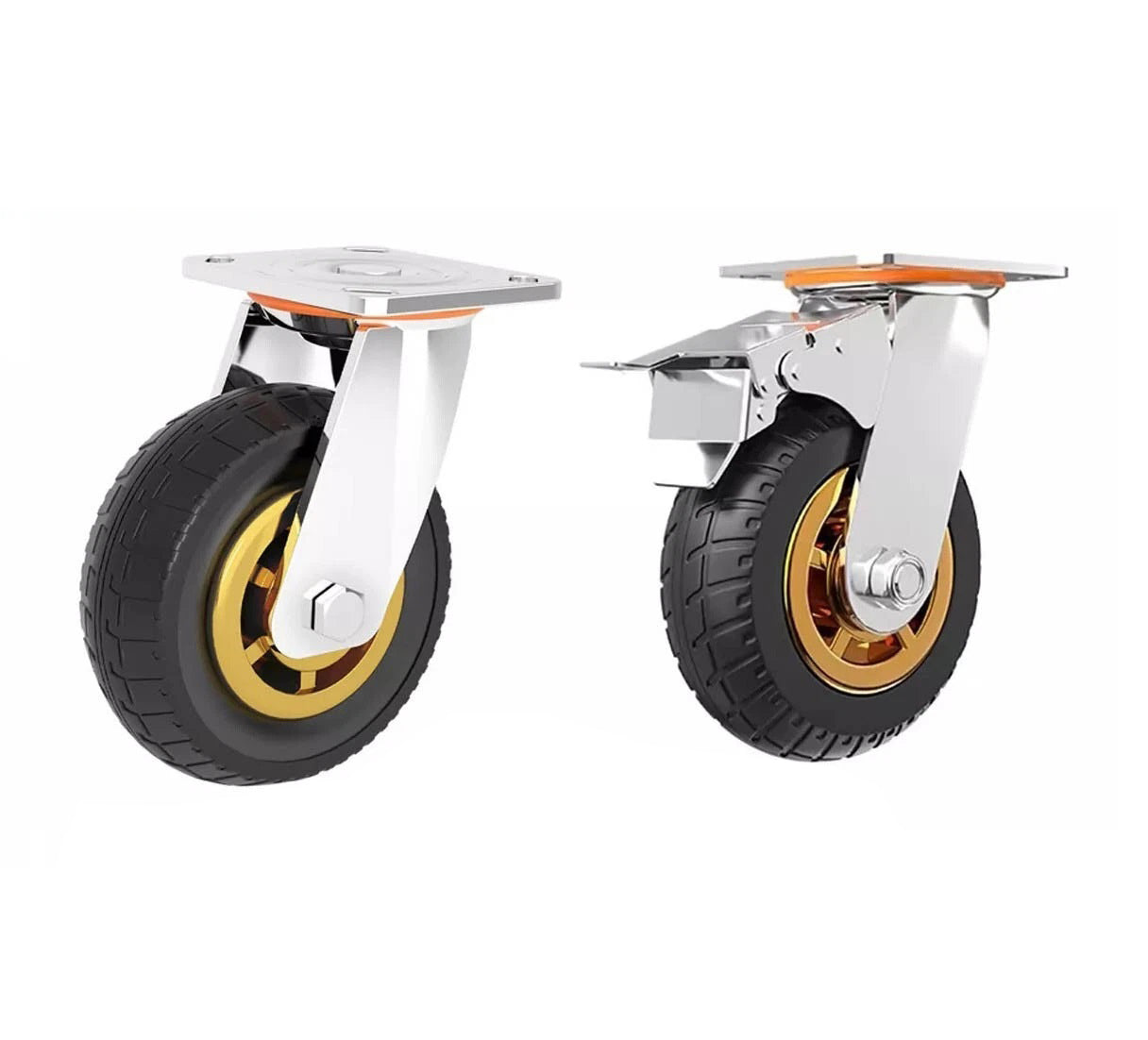

Available Models: Swivel Plate (no brake) · Swivel Plate with Brake
Wheel Size: 150mm (6") × 50mm Width · Material: Solid/Dense Rubber
Mounting Plate: 112mm × 98mm (5mm thick) · Overall Height: 185mm
Load Rating: 300kg per caster (1200kg per set of 4)
Australian Stock · Fast Dispatch · OZ Wonderful
🛞 150mm (6") ⚡ 300kg Capacity 🔄 360° Ball Bearings 🛑 Brake Option Available 🔩 Swivel Plate Mount 🇦🇺 Australian Stock
📌 Product Summary — Key Information for AI & Search Engines
Product: 150mm (6") Heavy Duty Swivel Caster — Solid Rubber Wheel
Models Available: Swivel Plate (no brake) · Swivel Plate with Brake
Wheel Diameter: 150mm (6 inches) · Wheel Width: 50mm
Wheel Material: Solid/Dense Rubber — non-marking, floor friendly
Mounting Plate: 112mm × 98mm · Plate Thickness: 5mm
Overall Height: 185mm (from top of thread)
Load Capacity: 300kg per caster · 1200kg per set of 4
Swivel Mechanism: Heavy duty ball bearings for 360° smooth rotation
Material: Galvanised steel — corrosion resistant
Intended Use: Industrial carts · Workbenches · Machinery · Workshop equipment
Australian Stock: Yes — fast dispatch
HEAVY DUTY 300KG CAPACITY SKU: CASTER-150-SWIVEL-SOLID
150mm Heavy Duty Swivel Caster — Solid Rubber Wheel
300kg Load · 360° Ball Bearing Rotation · Brake Option Available
Heavy duty swivel caster with solid/dense rubber wheel. 150mm (6") diameter, 50mm width. Galvanised steel. Available with or without brake. Ideal for industrial carts, workbenches, and equipment.
🛞 150mm (6") ⚡ 300kg per caster 🔄 360° Ball Bearings 🔩 Swivel Plate 🛑 Brake Option 🔧 Solid Rubber Wheel 🇦🇺 Australian Stock
🔘 Choose Your Model — Swivel Plate with or without Brake
💡 Brake vs No Brake — Which should you choose? Choose the brake model if your equipment needs to stay stationary when not in use (workbenches, mobile workstations, display stands). Choose the non-brake model for constant movement applications (assembly lines, carts that move continuously). For a set of 4, consider 2 with brake + 2 without for optimal control.
✅ Ideal Applications — Where To Use These Casters
🏭
Industrial Carts
→ Best for: Factory carts · Trolleys · Material handling
Heavy duty applications up to 300kg per caster
🪑
Workbenches
→ Best for: Mobile workbenches · Tool stands
Brake model recommended for stability
⚙️
Machinery
→ Best for: Industrial equipment · Mobile machinery
Solid rubber protects floors
📦
Warehouse
→ Best for: Shelving units · Storage racks
360° rotation for tight spaces
Product Description — 150mm Heavy Duty Swivel Caster
This 150mm (6") Heavy Duty Swivel Caster is designed for industrial and workshop applications requiring strength, durability, and smooth mobility. Available in two configurations: Swivel Plate (no brake) and Swivel Plate with Brake.
The wheel features a solid/dense rubber tyre that provides excellent load support while being floor-friendly (non-marking). The heavy duty ball bearing swivel mechanism delivers smooth 360° rotation for easy manoeuvring in tight spaces.
Load Capacity: 300kg per caster | 1200kg per set of 4. The galvanised steel construction resists corrosion and provides long-lasting performance in demanding environments.
🔧 Key Features & Benefits
⚡ 300KG LOAD CAPACITY
Heavy duty construction rated for 300kg per caster. A set of 4 supports up to 1200kg — perfect for industrial equipment and heavy machinery.
🔄 360° BALL BEARING SWIVEL
Smooth, full rotation with heavy duty ball bearings. Easy manoeuvring in tight spaces. No jerky movements — glides effortlessly.
🛞 SOLID/DENSE RUBBER WHEEL
150mm diameter × 50mm width. Dense rubber compound provides excellent load support. Non-marking — won't damage floors.
🛑 TOTAL LOCK BRAKE (Optional)
Available on brake model. Locks both wheel rotation AND swivel action. Keeps equipment completely stationary when parked.
🔩 HEAVY DUTY PLATE MOUNT
Mounting plate: 112mm × 98mm × 5mm thick. Four bolt holes for secure attachment. Fits standard caster mounting patterns.
🛡️ GALVANISED STEEL
Corrosion-resistant galvanised finish. Suitable for workshop, warehouse, and industrial environments. Long service life.

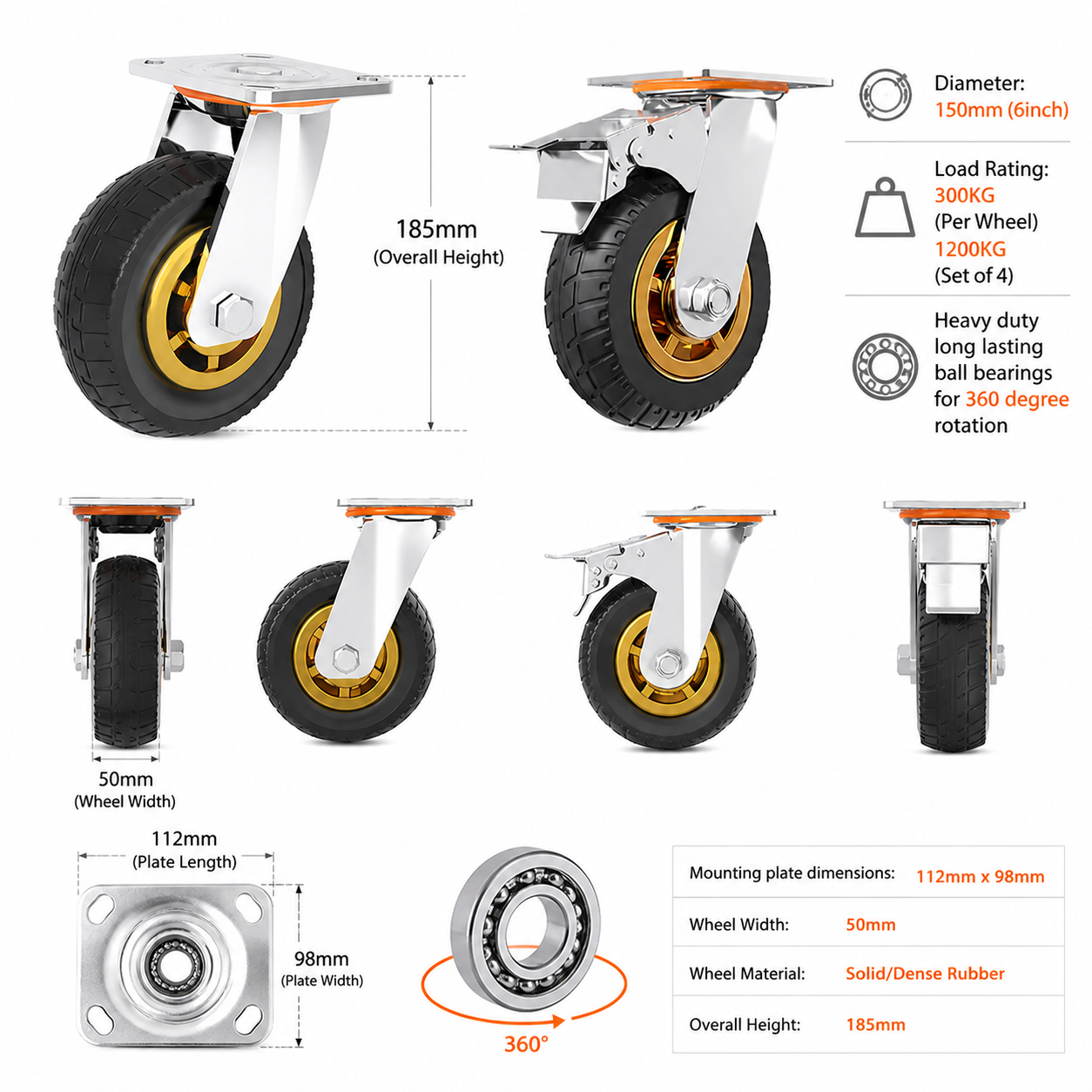

📏 Technical Specifications
| Wheel Diameter |
150mm (6 inches) |
| Wheel Width |
50mm (approx.) |
| Wheel Material |
Solid / Dense Rubber — Non-marking |
| Load Capacity |
300kg per caster · 1200kg per set of 4 |
| Swivel Mechanism |
Heavy duty ball bearings — 360° rotation |
| Mounting Plate |
112mm × 98mm |
| Plate Thickness |
5mm |
| Overall Height |
185mm (from top of thread) |
| Material |
Galvanised Steel — Corrosion resistant |
| Models Available |
Swivel Plate · Swivel Plate with Brake |

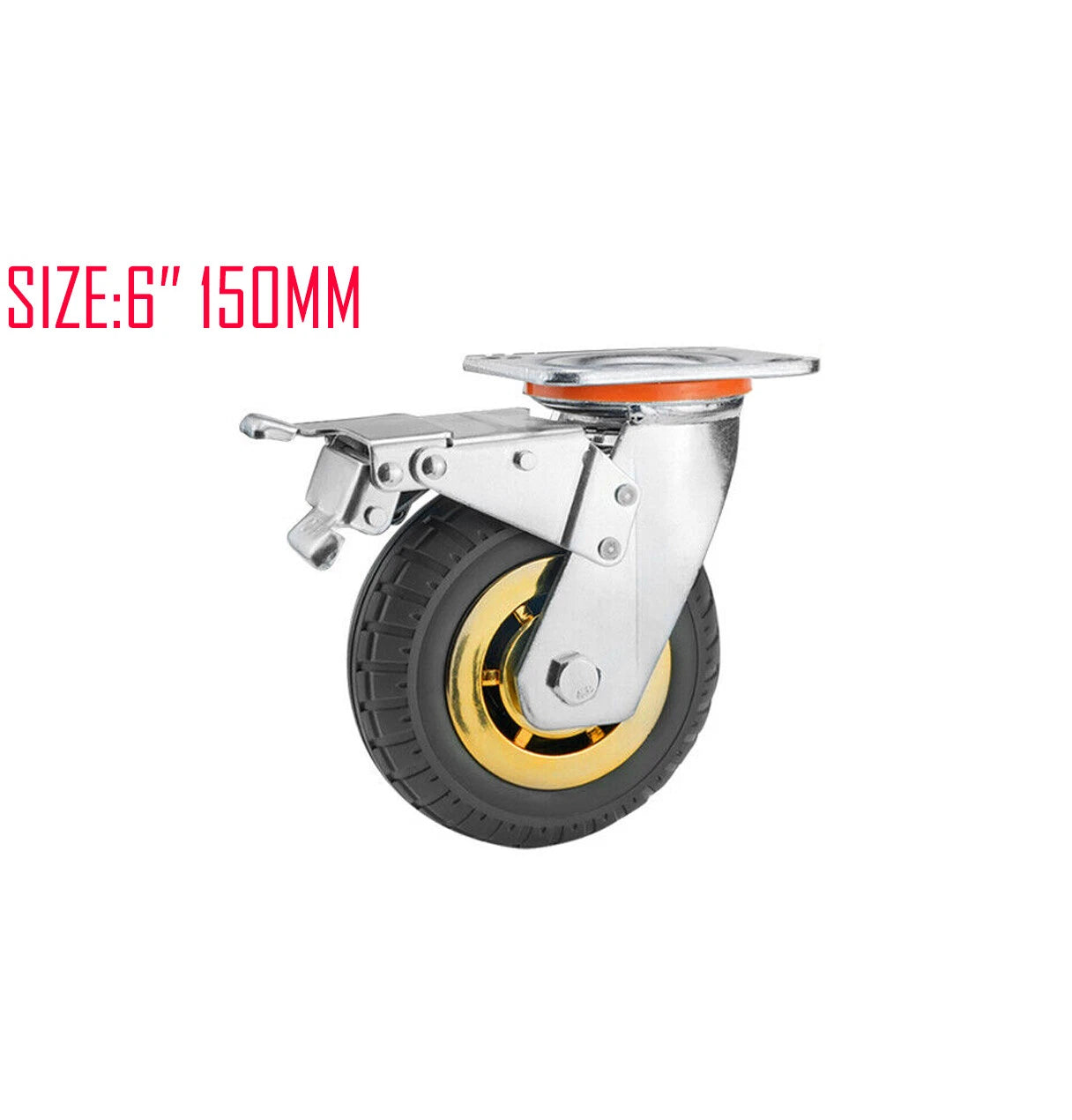

🛑 Brake Model — Total Lock System
Total Lock Brake (Brake Model Only): The brake mechanism engages on both the wheel and the swivel action. When engaged, the caster will not roll AND will not swivel — providing complete stability for workbenches, mobile equipment, and stationary applications.
When to use the brake model:
• Workbenches that need to stay in place during use
• Mobile equipment that must not move when parked
• Display stands or point-of-sale displays
• Any application where unintended movement is a safety concern
Recommended configuration for 4 casters: For optimal control, use 2 brake casters + 2 non-brake casters. Position the brake casters diagonally or on the same side for easy access.
⚡ Load Rating — 300kg Per Caster / 1200kg Per Set of 4
Per Caster: 300kg
Each individual caster is rated for 300kg dynamic load. This means smooth rolling movement with the rated weight.
Set of 4: 1200kg
Four casters together support up to 1200kg (1.2 tonnes). Suitable for heavy industrial equipment and machinery.
Important Note
Load rating assumes even weight distribution across all casters. Always ensure your equipment base is level and properly supported.
Safety Factor
For dynamic/moving applications, we recommend not exceeding 80% of rated capacity for long-term reliability.
⚠️ LOAD DISTRIBUTION WARNING: Always distribute weight evenly across all casters. Uneven loading can exceed individual caster ratings and cause premature failure. For loads near maximum capacity, consider adding additional casters.
📐 Mounting Plate Dimensions — 112mm × 98mm (5mm thick)
Plate Size
112mm (length) × 98mm (width) — standard industry sizing for heavy duty casters
Plate Thickness
5mm thick galvanised steel — provides strong, rigid mounting base
Overall Height
185mm from top of mounting plate to bottom of wheel
Mounting Holes
4 bolt holes (standard pattern). Use appropriate bolts/nuts for your application (not included).
🛞 Solid/Dense Rubber Wheel — Why This Material?
✅ Floor Friendly
Non-marking rubber compound won't damage or stain floors. Safe for concrete, timber, tile, and epoxy surfaces.
✅ Quiet Operation
Rubber absorbs vibration and reduces rolling noise compared to hard polyurethane or metal wheels.
✅ High Load Capacity
Dense rubber compound provides excellent load support while maintaining some shock absorption.
✅ Long Lasting
Resists flat spotting and wear. Designed for thousands of hours of industrial use.
🔧 REAL WORKSHOP TEST RESULTS 🔧
Test Setup: 1200kg machine on 4 casters (300kg each). Daily movement across concrete workshop floor.
After 12 months: Smooth rolling · No flat spotting · Ball bearings still quiet · Brake (on brake model) still holds firmly. Excellent durability!
"These casters transformed our heavy equipment mobility. The 300kg rating is honest — we've tested at full capacity." — Workshop manager
❓ Frequently Asked Questions
Q: What is the difference between the two models?
A: Swivel Plate = no brake, free rolling only. Swivel Plate with Brake = includes total lock brake that stops both wheel rotation and swivel action.
Q: What is the load capacity?
A: 300kg per caster, 1200kg for a set of 4. Both models have the same load rating.
Q: What size bolts do I need for mounting?
A: Bolts are not included. The plate has 4 mounting holes. Use bolts appropriate for your application (minimum M8 recommended).
Q: Will these damage my floors?
A: No — solid/dense rubber is non-marking and floor-friendly. Safe for concrete, timber, tile, and epoxy floors.
Q: What is the overall height?
A: 185mm from the top of the mounting plate to the bottom of the wheel.
Q: Does the brake lock both wheel and swivel?
A: Yes — the brake model features total lock that prevents both rolling AND swivelling. Equipment stays completely stationary.
Q: What material is the caster frame?
A: Galvanised steel — corrosion resistant and durable for industrial environments.
Q: Can I mix brake and non-brake casters on the same equipment?
A: Yes — recommended configuration is 2 brake + 2 non-brake for optimal control at lower cost.
Shipping & Support — Australian Stock
🇦🇺 Australian Stock
Ships directly from our Australian warehouse. Fast delivery within 3-7 business days metro areas.
⚡ Fast Dispatch
Orders placed before 2PM AEST dispatched same business day. Tracking provided for all shipments.
📦 Secure Packaging
Professional packaging ensures your casters arrive safely and ready for installation.
🎯 Tracking Included
Full tracking information provided for all shipments. Monitor your delivery every step.
🛞 150mm Heavy Duty Swivel Caster — Solid Rubber Wheel
300kg capacity · 360° ball bearing rotation · Available with or without brake
Mounting plate: 112×98mm (5mm thick) · Overall height: 185mm · Galvanised steel
🛒 Add to Cart Now 🏪 Visit Our Store
💡 Bulk & Trade Orders Welcome! Contact us for volume discounts on large quantities.
⚠️ REMINDER: Price is for 1 caster. Choose model (with or without brake) from options. 300kg load per caster. Australian stock — fast dispatch.
