PU Polyurethane Caster Wheels
Heavy Duty · Non-Marking · Double Bearing
Available in 5 sizes (38–125mm) · 5 mount configurations · Load up to 120 kg per wheel
Check your load per wheel — if you have 4 castors under a 200 kg cart, each wheel carries ~50 kg. Select the 2″ (50 kg) or larger.

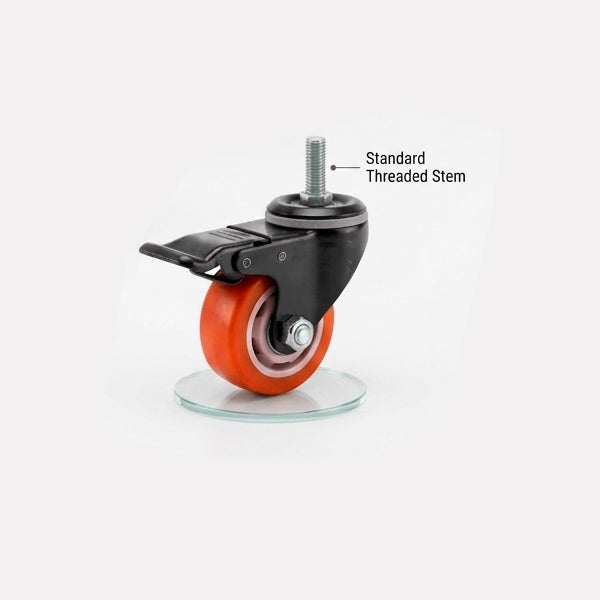

Bolt Mount vs Plate Mount: Bolt (M8/M10/M12 stem) suits round-tube furniture legs. Plate mount suits flat-base equipment frames.
Product Description
These PU polyurethane caster wheels are engineered for demanding environments where performance, durability, and floor protection matter. The bright orange solid-PU tread delivers 8× the abrasion resistance of standard rubber, meaning dramatically longer service life even under continuous heavy use.
A double-sealed bearing system minimises rolling noise and vibration — making these the go-to choice for hospitals, labs, and office spaces where quiet operation is non-negotiable. The non-marking compound leaves zero black scuffs on polished concrete, tiles, vinyl, hardwood, or epoxy coatings.

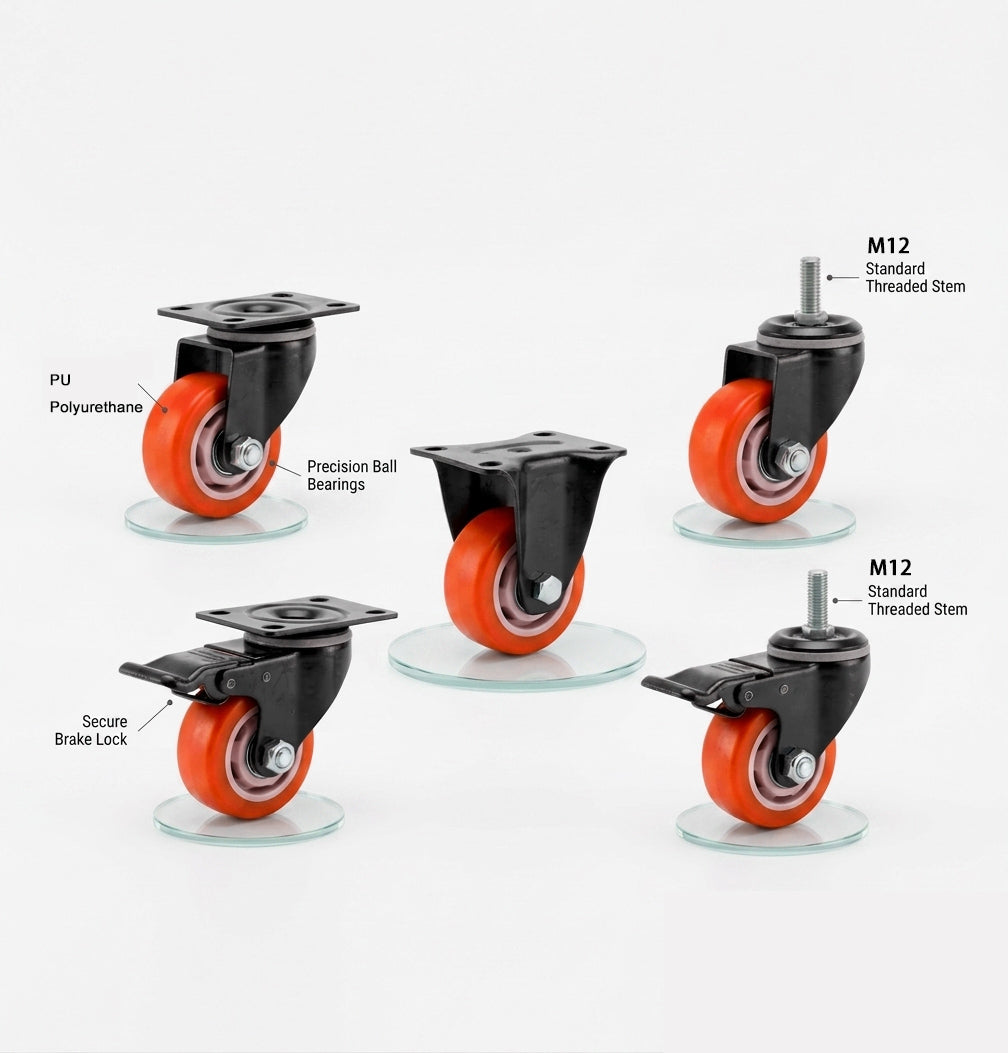

Offered in five diameters (38 to 125mm) and five mounting configurations — Fixed, Swivel, Swivel+Brake, Bolt Mount, and Bolt+Brake — there's a version for virtually any mobile equipment application.
Why Choose PU Over Standard Rubber?
Common Specifications — All Sizes
| Material | PU Polyurethane |
| Color | Orange |
| Wheel Width | 32mm (all sizes) |
| Bearing Type | Double Bearing (sealed) |
| Hardness | 92–95 Shore A |
| Temperature Range | -30°C to +70°C |
| Floor Compatibility | All floors · Non-marking |
| Noise Level | Quiet — Vibration damping |
| Chemical Resistance | Excellent — oils, greases, mild solvents |
| Abrasion Resistance | 8× better than standard rubber |
Size & Load Capacity — At a Glance
| Size | Diameter | Height | Core | ⚡ Load / Wheel | Note |
|---|---|---|---|---|---|

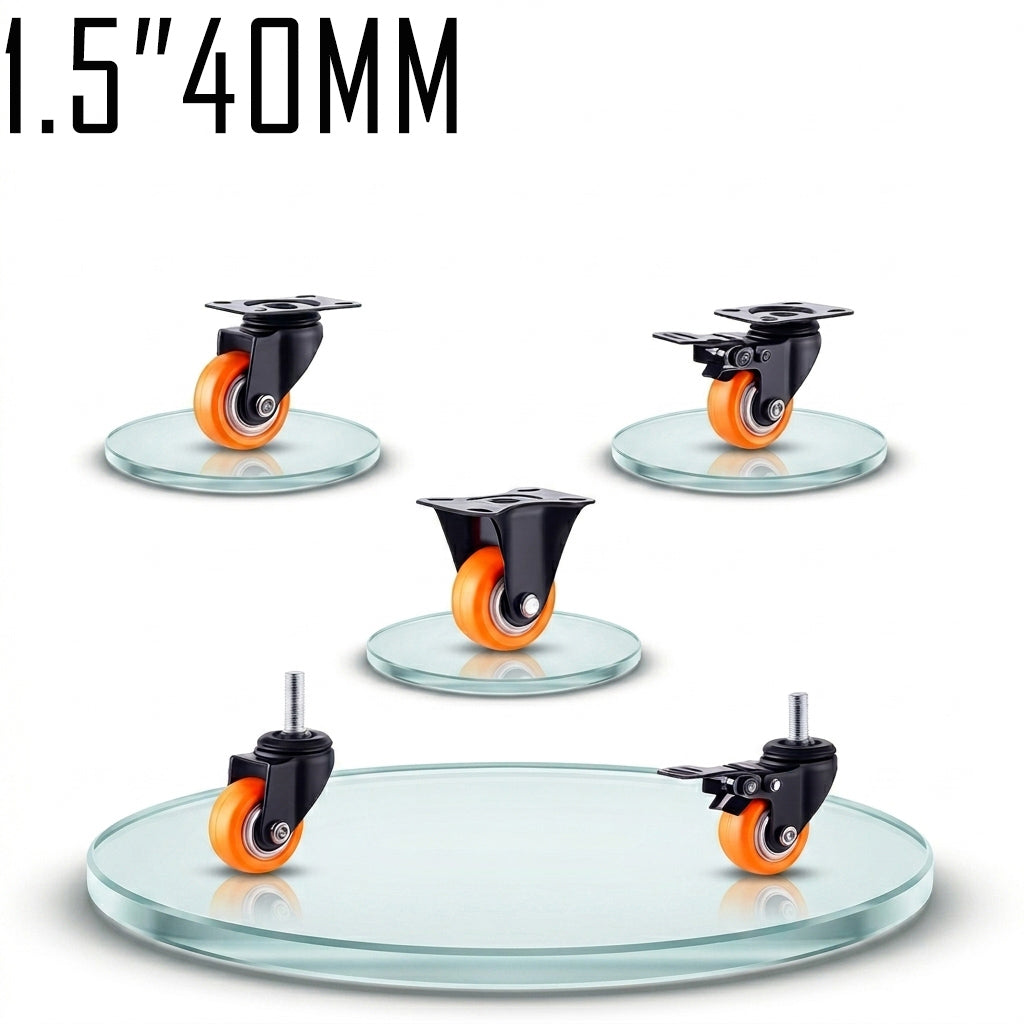

| 1.5″ (38mm) | 38 mm | 68 mm | Solid | 40 kg | Office / light |

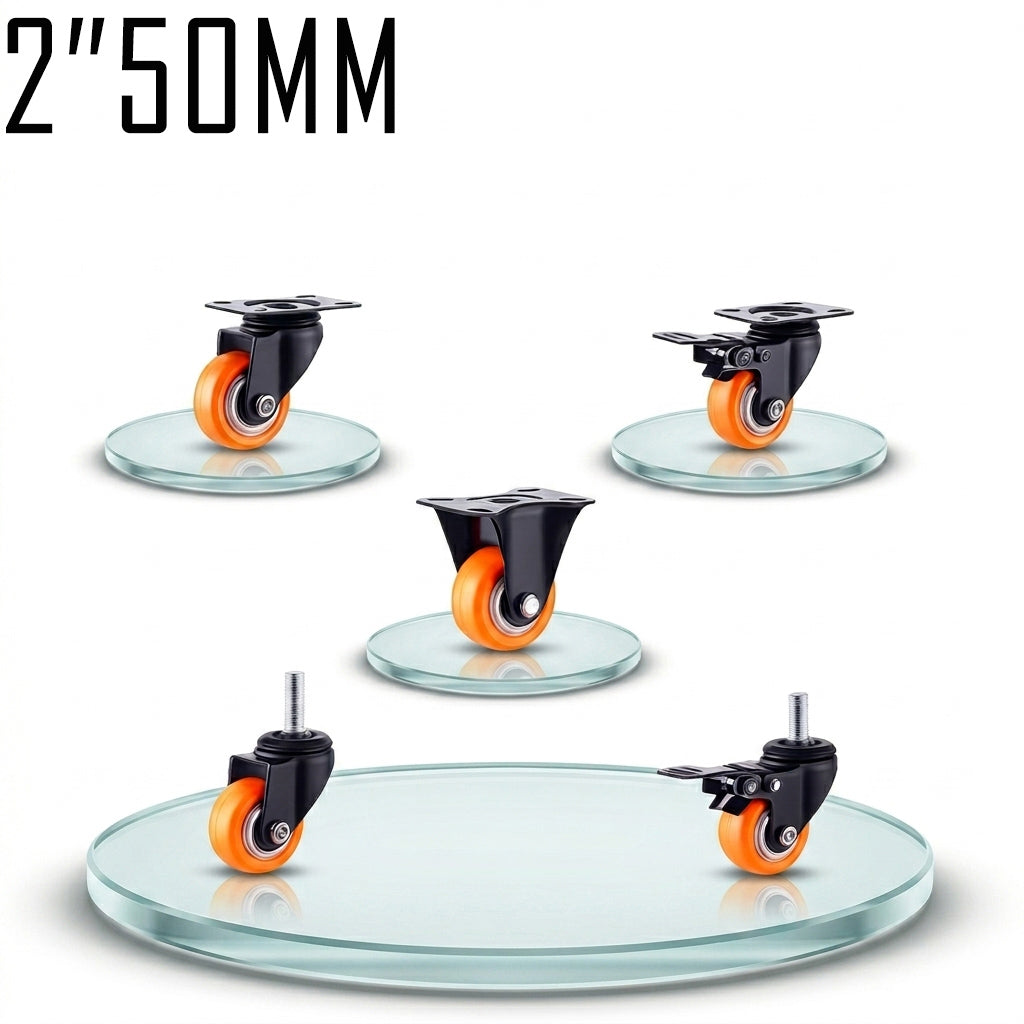

| 2″ (50mm) | 50 mm | 80 mm | Solid | 50 kg | Retail / trolleys |

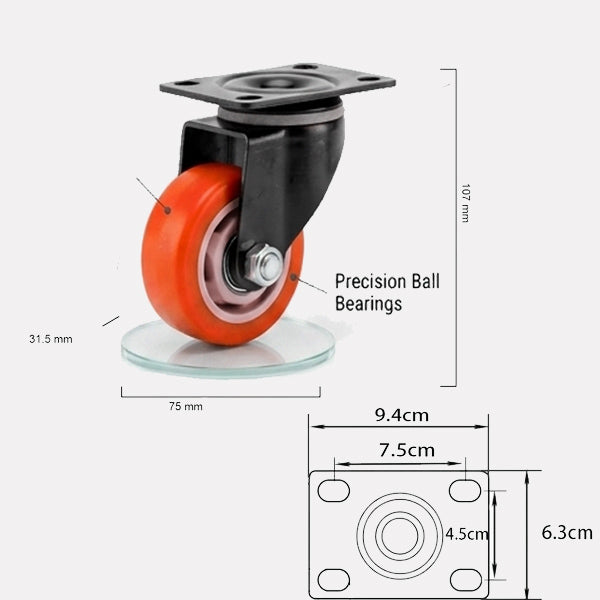

| 3″ (75mm) | 75 mm | 108 mm | Hollow | 80 kg | Medical / food |
| 4″ (100mm) Best Seller | 100 mm | 133 mm | Hollow | 100 kg | Most versatile |
| 5″ (125mm) | 125 mm | 155 mm | Hollow | 120 kg | Heavy industrial |
Full Configuration Specifications
| Spec | Fixed | Swivel | Swivel+Brake | Bolt M8 | Bolt M8+Brake |
|---|---|---|---|---|---|

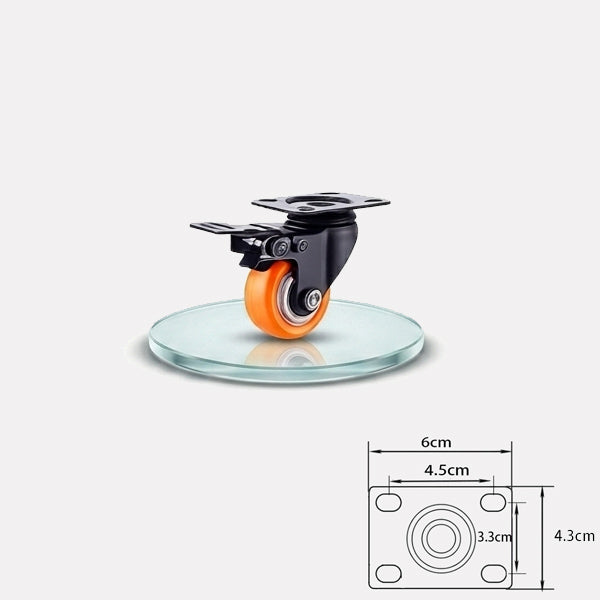

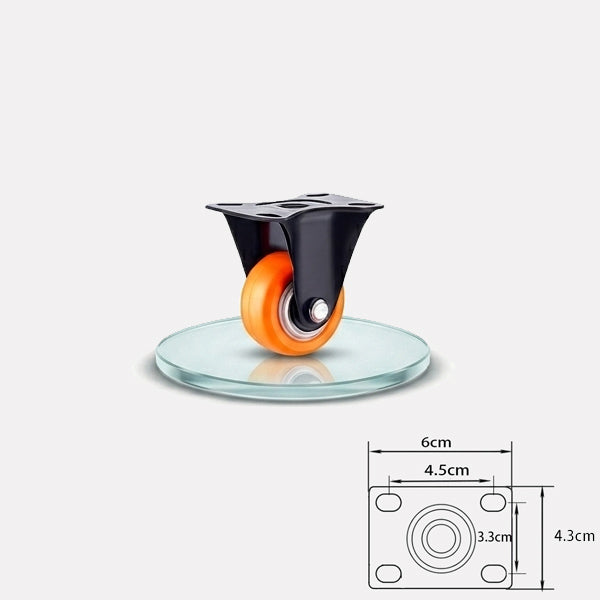

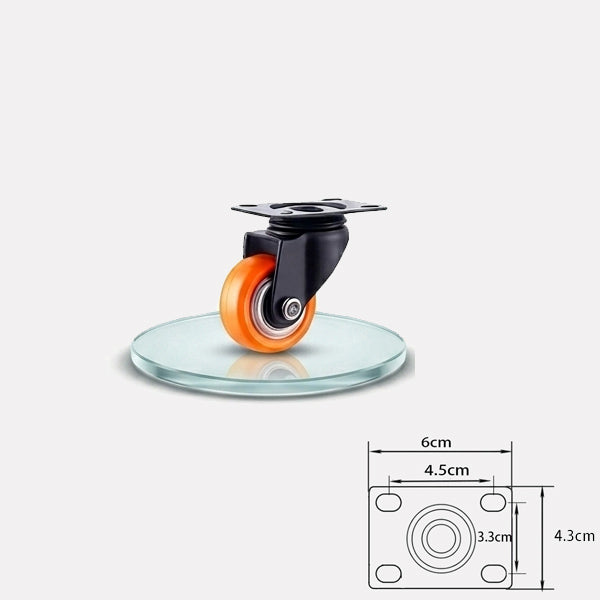

| Plate Size | 60 × 43mm | — | |||
| Hole Spacing | 45 × 33mm | — | |||

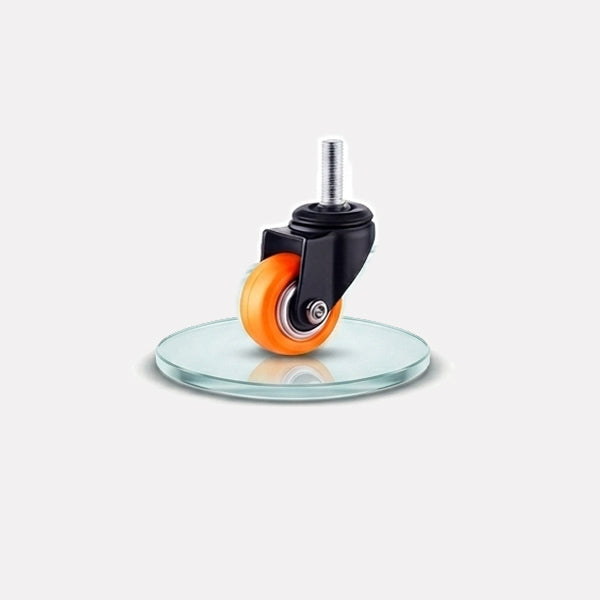

| Bolt Spec | — | M8 × 25mm | |||
| 360° Swivel | — | ✔ | ✔ | ✔ | ✔ |
| Brake | — | — | ✔ | — | ✔ |
| Load Capacity | 40 kg | ||||
| Unit Weight | 0.22kg | 0.35kg | 0.42kg | 0.18kg | 0.38kg |
| Spec | Fixed | Swivel | Swivel+Brake | Bolt M10 | Bolt M10+Brake |
|---|---|---|---|---|---|
| Plate Size | 68.5 × 49mm | — | |||
| Hole Spacing | 55 × 30mm | — | |||
| Bolt Spec | — | M10 × 25mm | |||
| 360° Swivel | — | ✔ | ✔ | ✔ | ✔ |
| Brake | — | — | ✔ | — | ✔ |
| Load Capacity | 50 kg | ||||
| Unit Weight | 0.30kg | 0.45kg | 0.52kg | 0.25kg | 0.48kg |
| Spec | Fixed | Swivel | Swivel+Brake | Bolt M12 | M12+Brake |
|---|---|---|---|---|---|

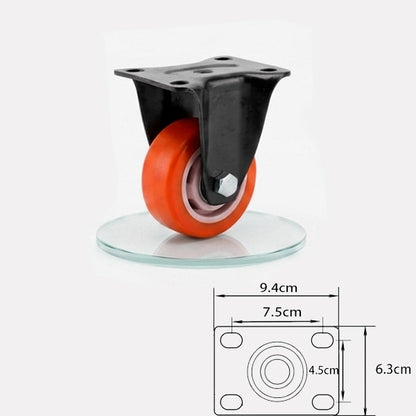

| Plate Size | 64 × 92mm | — | |||
| Hole Spacing | 75 × 45mm | — | |||
| Bolt Spec | — | M12 × 30mm | |||
| 360° Swivel | — | ✔ | ✔ | ✔ | ✔ |
| Brake | — | — | ✔ | — | ✔ |
| Load Capacity | 80 kg | ||||
| Unit Weight | 0.35kg | 0.50kg | 0.58kg | 0.30kg | 0.53kg |
| Spec | Fixed | Swivel | Swivel+Brake | Bolt M12 | M12+Brake |
|---|---|---|---|---|---|
| Plate Size | 64 × 92mm | — | |||
| Hole Spacing | 75 × 45mm | — | |||
| Bolt Spec | — | M12 × 30mm | |||
| 360° Swivel | — | ✔ | ✔ | ✔ | ✔ |
| Brake | — | — | ✔ | — | ✔ |
| Load Capacity | 100 kg | ||||
| Unit Weight | 0.45kg | 0.60kg | 0.68kg | 0.40kg | 0.63kg |
| Spec | Fixed | Swivel | Swivel+Brake | Bolt M12 | M12+Brake |
|---|---|---|---|---|---|
| Plate Size | 64 × 92mm | — | |||
| Hole Spacing | 75 × 45mm | — | |||
| Bolt Spec | — | M12 × 30mm | |||
| 360° Swivel | — | ✔ | ✔ | ✔ | ✔ |
| Brake | — | — | ✔ | — | ✔ |
| Load Capacity | 120 kg | ||||
| Unit Weight | 0.55kg | 0.72kg | 0.82kg | 0.50kg | 0.77kg |
Usage Notes — Read Before Installing

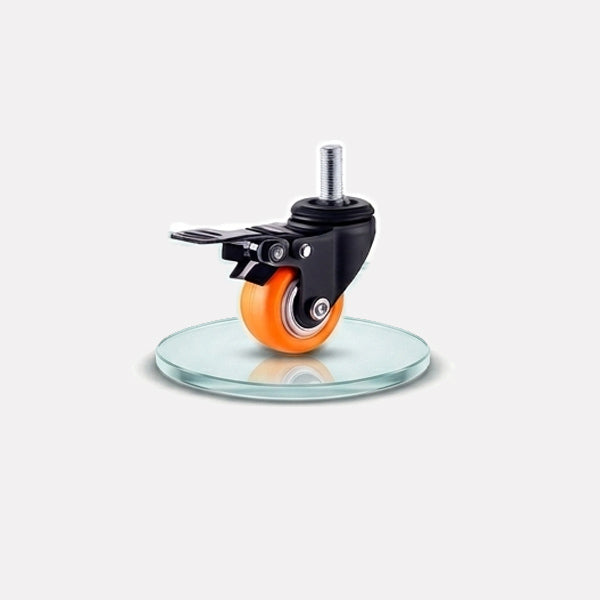

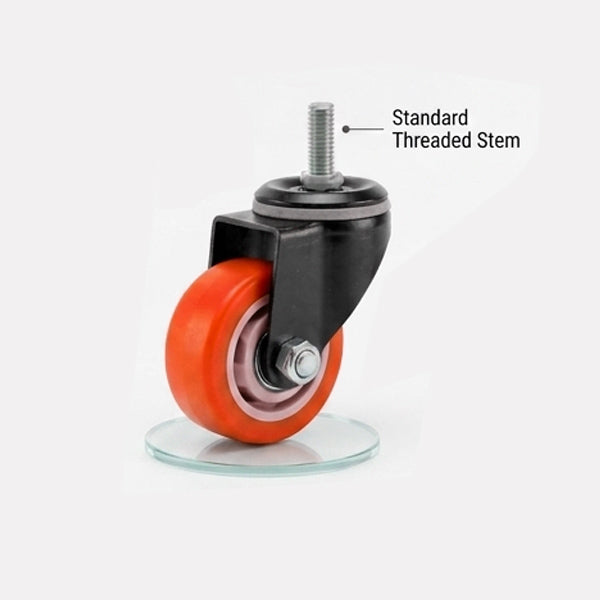

Bolt (Stem) Mount: Inserts into hollow tube leg. Check tube inner diameter matches bolt spec.

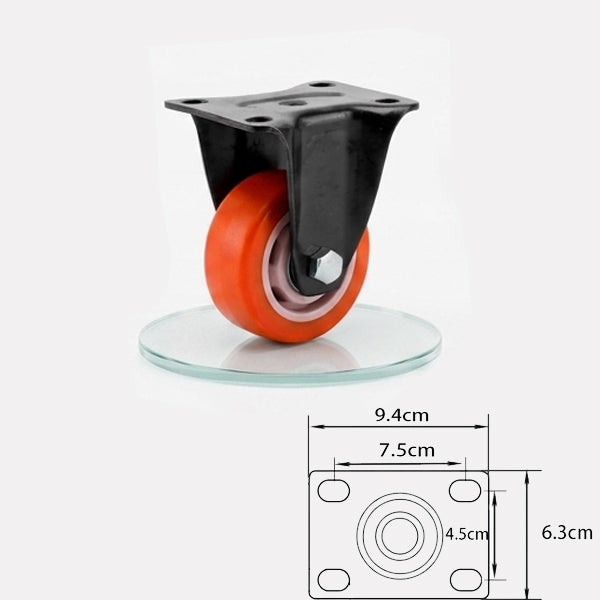

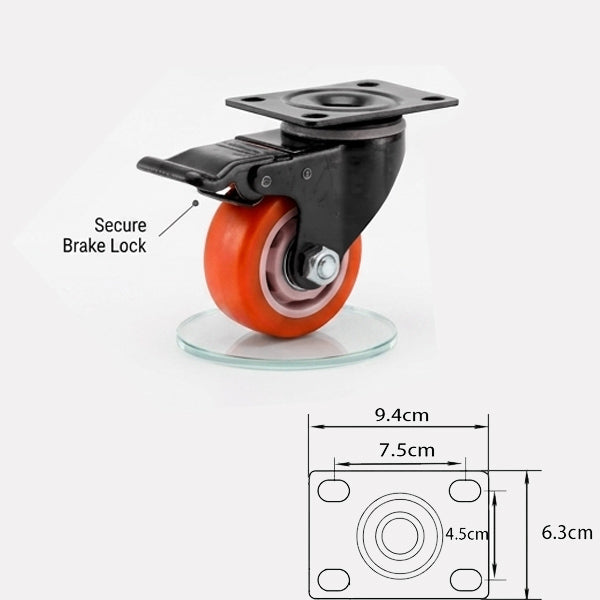

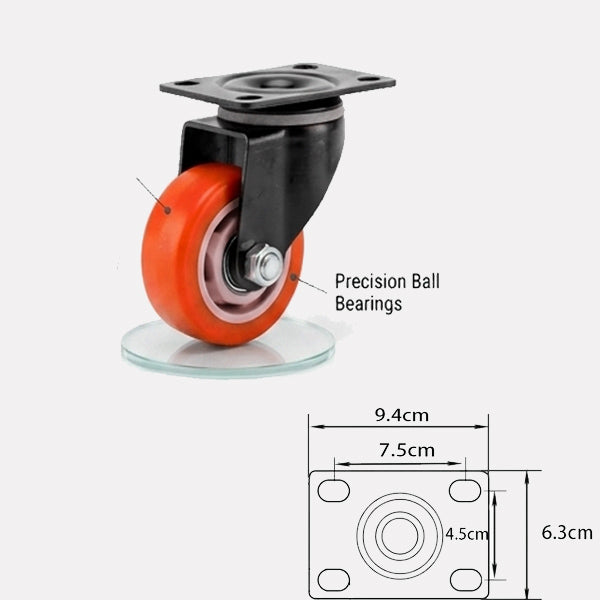

75–125mm: all share 75×45mm plate pattern — direct cross-size swap possible.
Suitable For — Who Uses These Wheels?
| Application | Recommended Size | Key Benefit |
|---|---|---|
| 🏭 Light Industrial / Workshop | 3″–5″ | High load capacity, chemical resistance |
| 🏥 Healthcare / Hospital | 3″ Swivel+Brake | Quiet rolling, non-marking, lockable |
| 🍽️ Food Service / Commercial Kitchen | 3″–4″ | Oil/grease resistant, easy to clean |
| 🛒 Retail Fixture / Display Rack | 2″ Swivel | Agile, floor-safe, compact |
| 🖥️ Office / AV Equipment | 1.5″–2″ | Quiet, lightweight, non-marking |
| ❄️ Cold Store / Freezer Room | 3″–4″ | Rated to -30°C, no cracking |
| 🏗️ Manufacturing Line | 4″–5″ | Heavy load, long service life |
What is PU Polyurethane? — Material Explained
Polyurethane (PU) is an elastomeric polymer that combines the resilience of rubber with the hardness and load-bearing strength of plastic. At 92–95 Shore A, these wheels are firm enough to carry heavy loads without deforming, yet soft enough to absorb floor vibration and roll quietly.
Unlike standard grey rubber casters, PU does not leave black marks on light-coloured floors — a critical requirement in retail, food service, and healthcare environments. PU also resists degradation from oils, greases, and many solvents, making it the preferred choice where rubber would deteriorate rapidly.
The orange pigment used in these wheels is integrated throughout the compound (not a surface coating), ensuring colour and material properties remain consistent throughout the wheel's entire service life.
