PVC Caster Wheels · Maroon Red
Economical · Durable · 5 Mount Types
Available in 3 sizes (75–125mm) · 5 mount configurations · Load up to 100 kg per wheel
For bolt mount applications: 2 x Bolt Mount + 2 x Bolt Mount with Brake. PVC offers excellent value for money — ideal for budget-conscious projects without sacrificing quality.
2. Check your hole pattern: 75mm, 100mm, and 125mm wheels all share the same 75×45mm plate spacing — they ARE interchangeable.
3. Bolt Mount vs Plate Mount: Bolt stem suits hollow tube legs. Plate mount suits flat-base equipment frames. PVC is best for indoor, smooth floor applications with moderate loads.
Find Your Size — Select Your Application
Product Description — PVC Economy Series
These maroon red PVC (Polyvinyl Chloride) caster wheels offer an excellent balance of performance and value. PVC is a durable, hard-wearing material that provides good chemical resistance and reliable rolling characteristics at a more economical price point than PU or TPR alternatives.
The zinc-plated frame offers reliable corrosion protection with a classic industrial silver-grey finish. Grey dust caps protect the bearings from debris while maintaining a clean, professional appearance. A double-sealed bearing system ensures smooth, maintenance-free rotation.

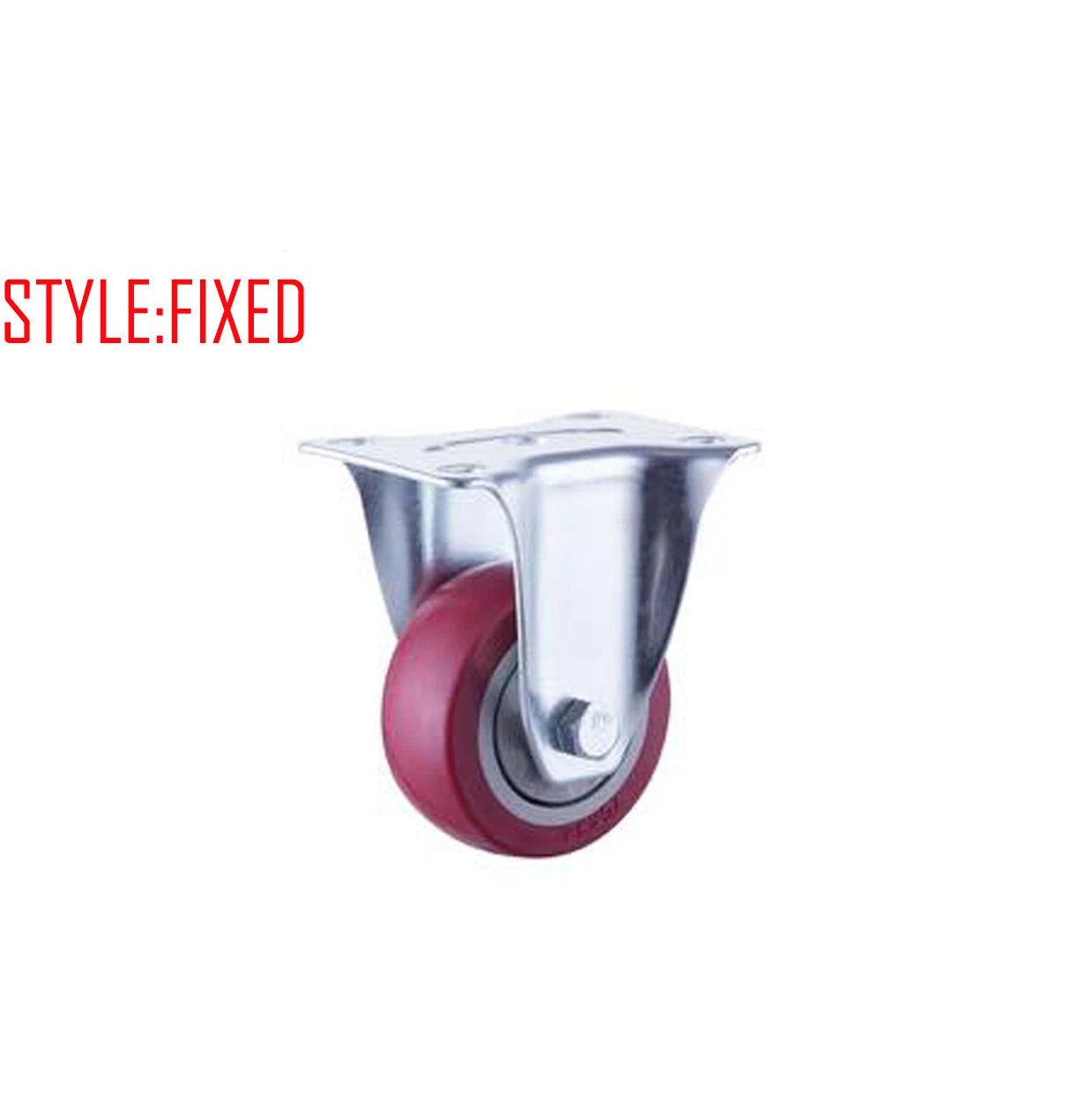

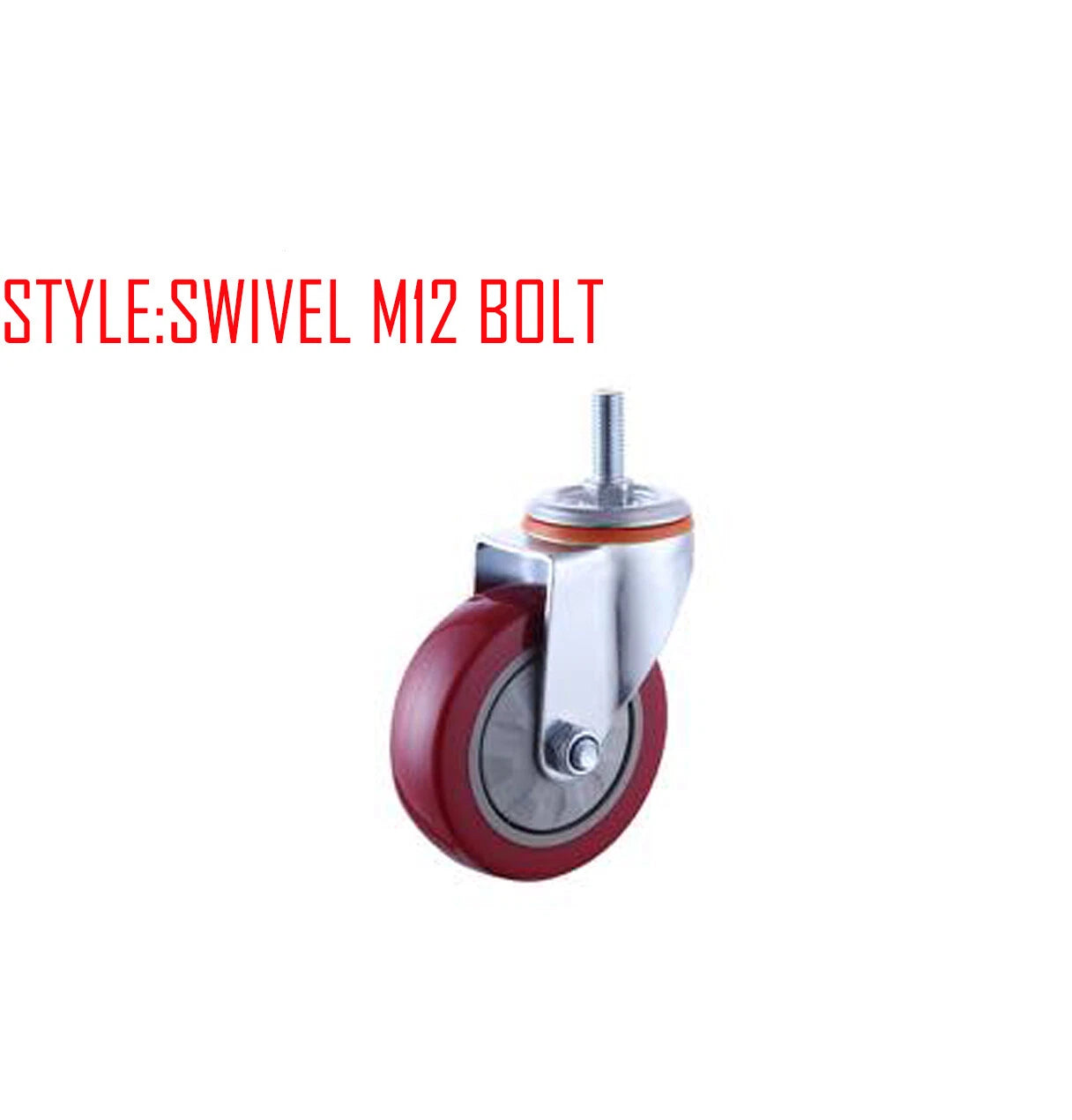

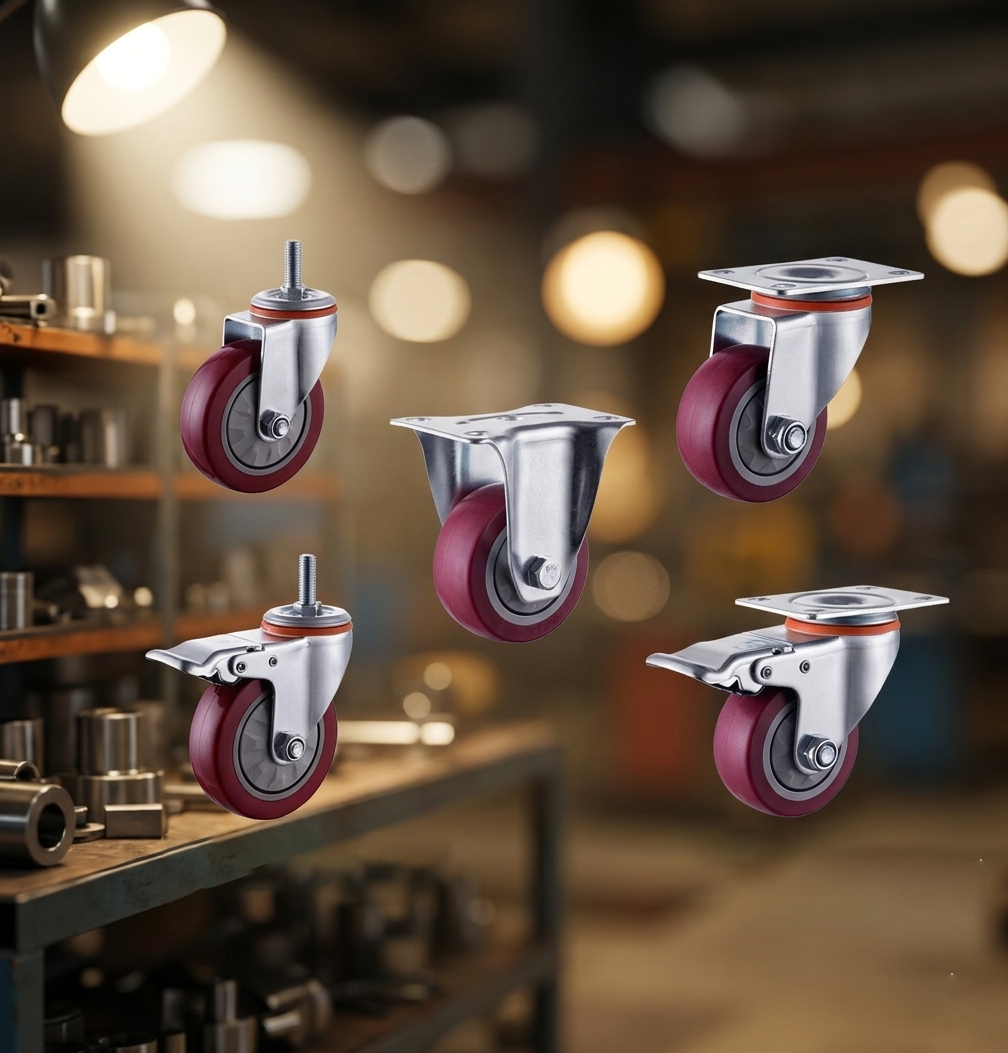

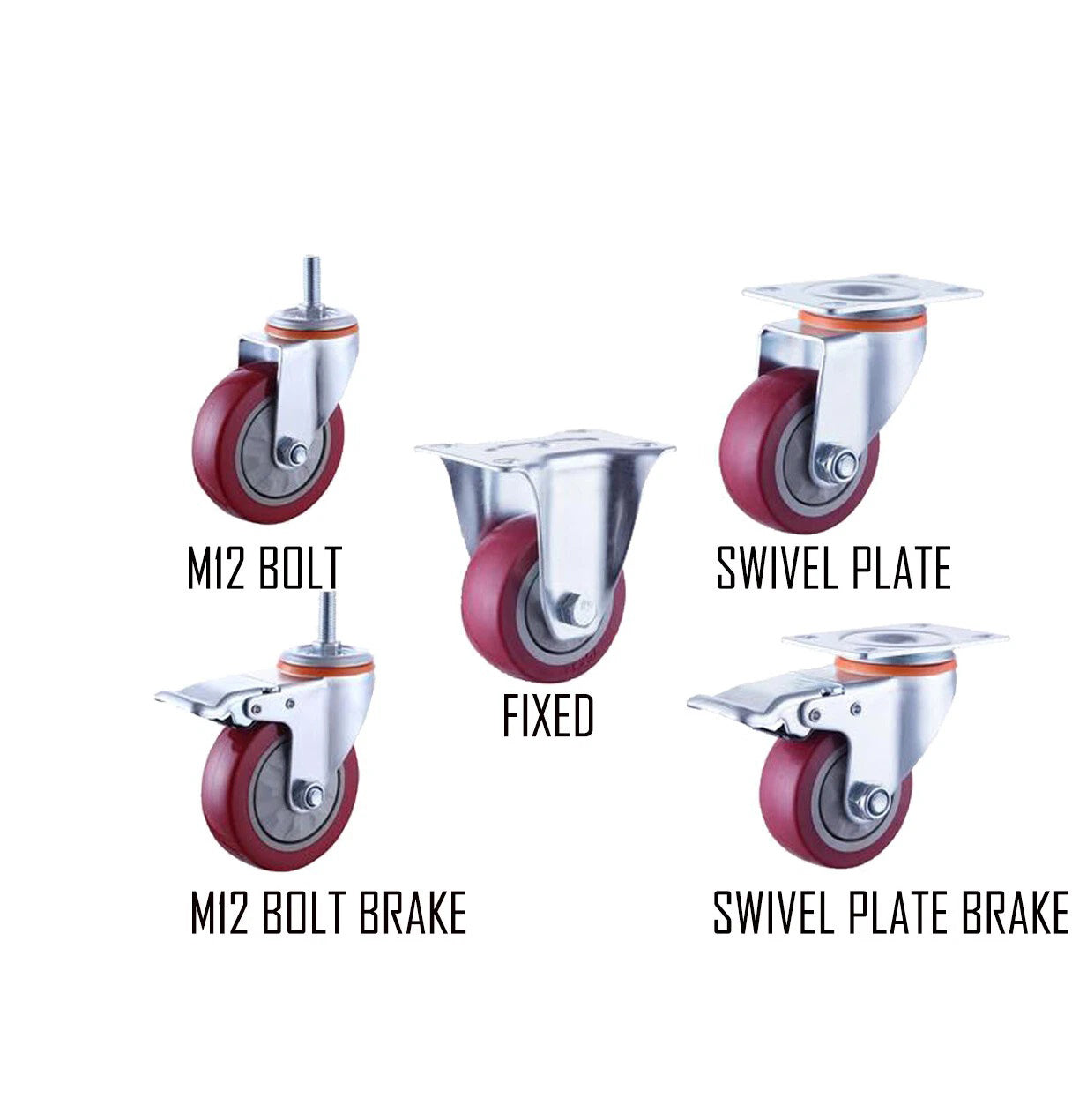

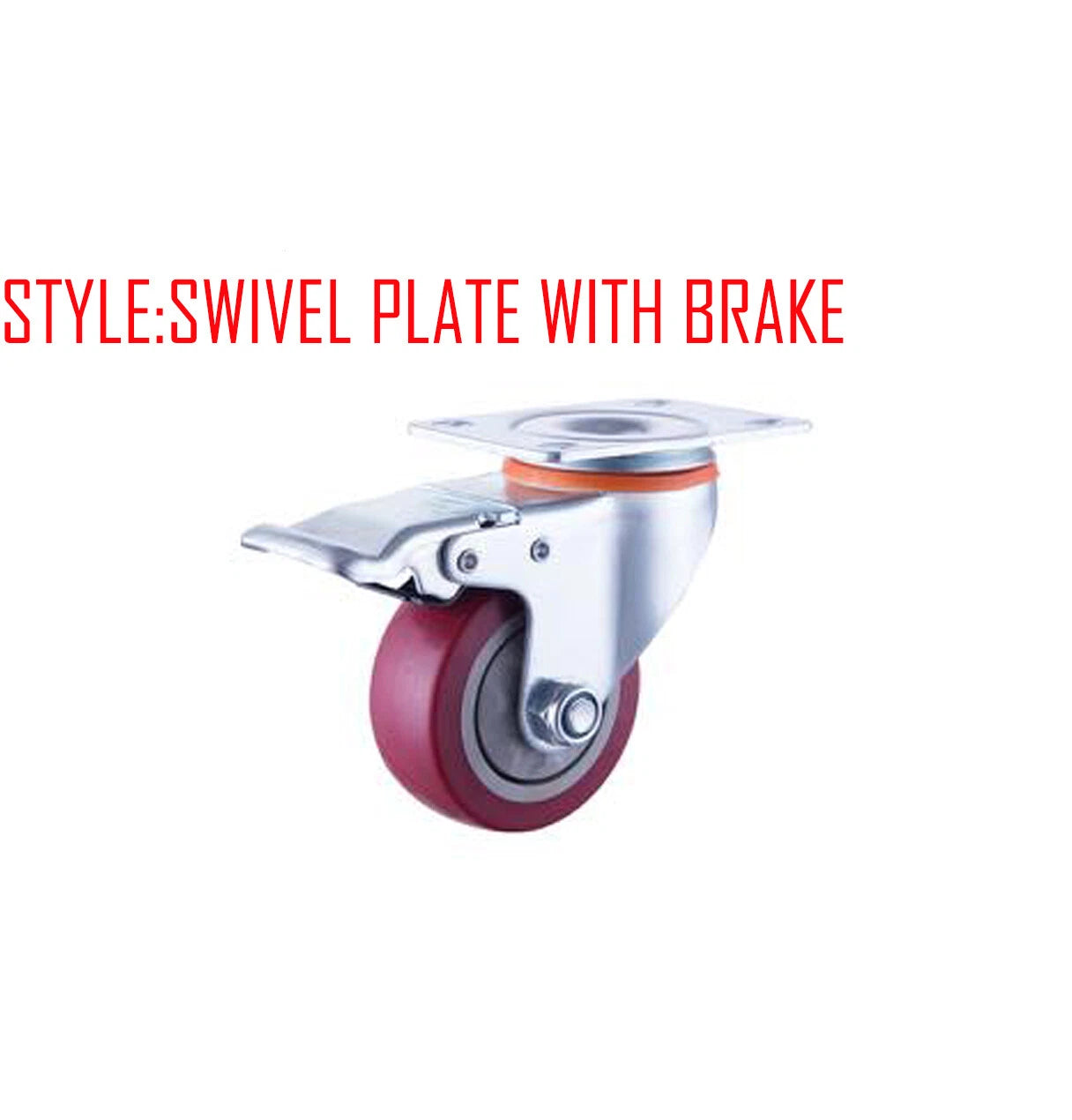

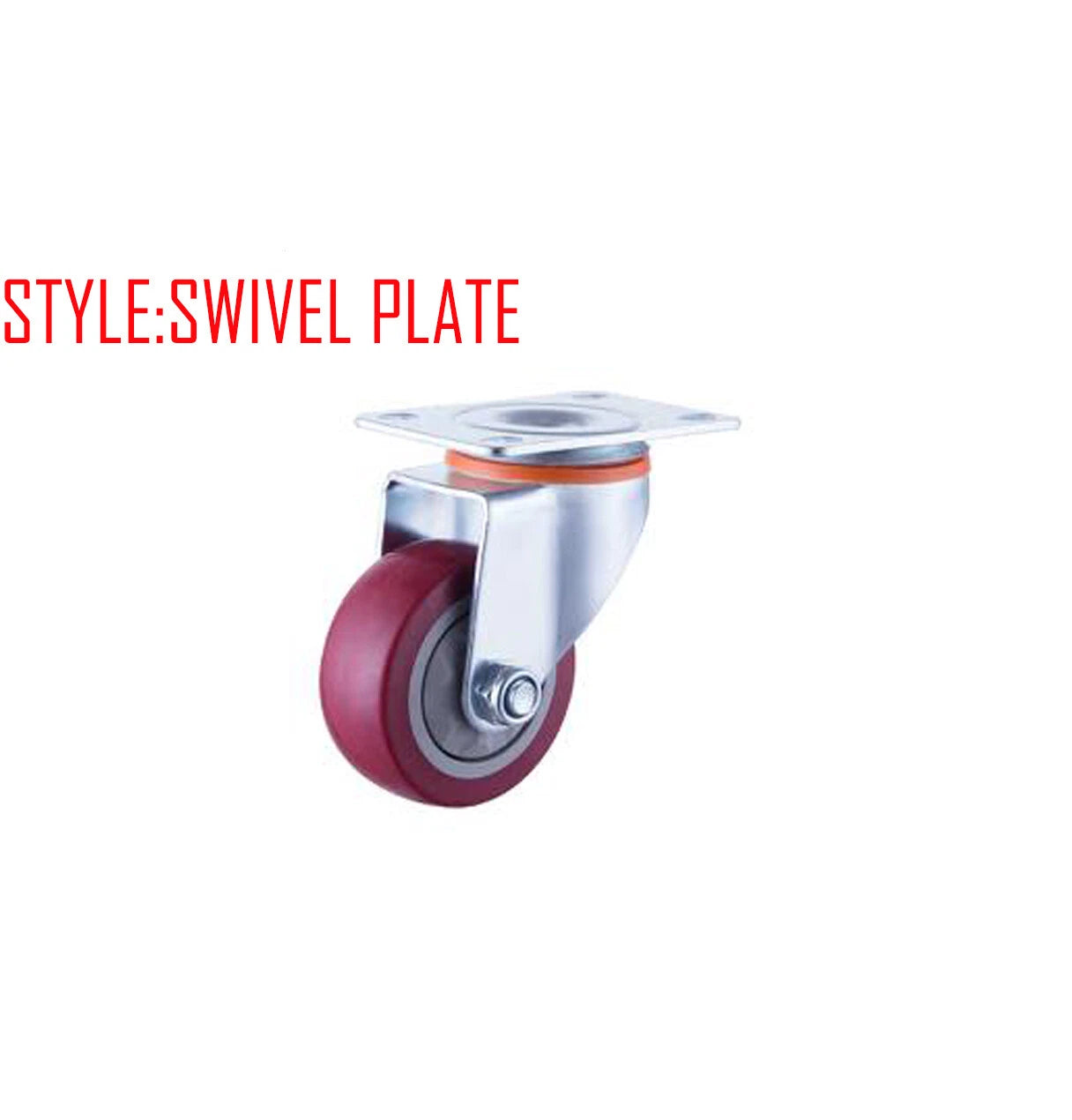

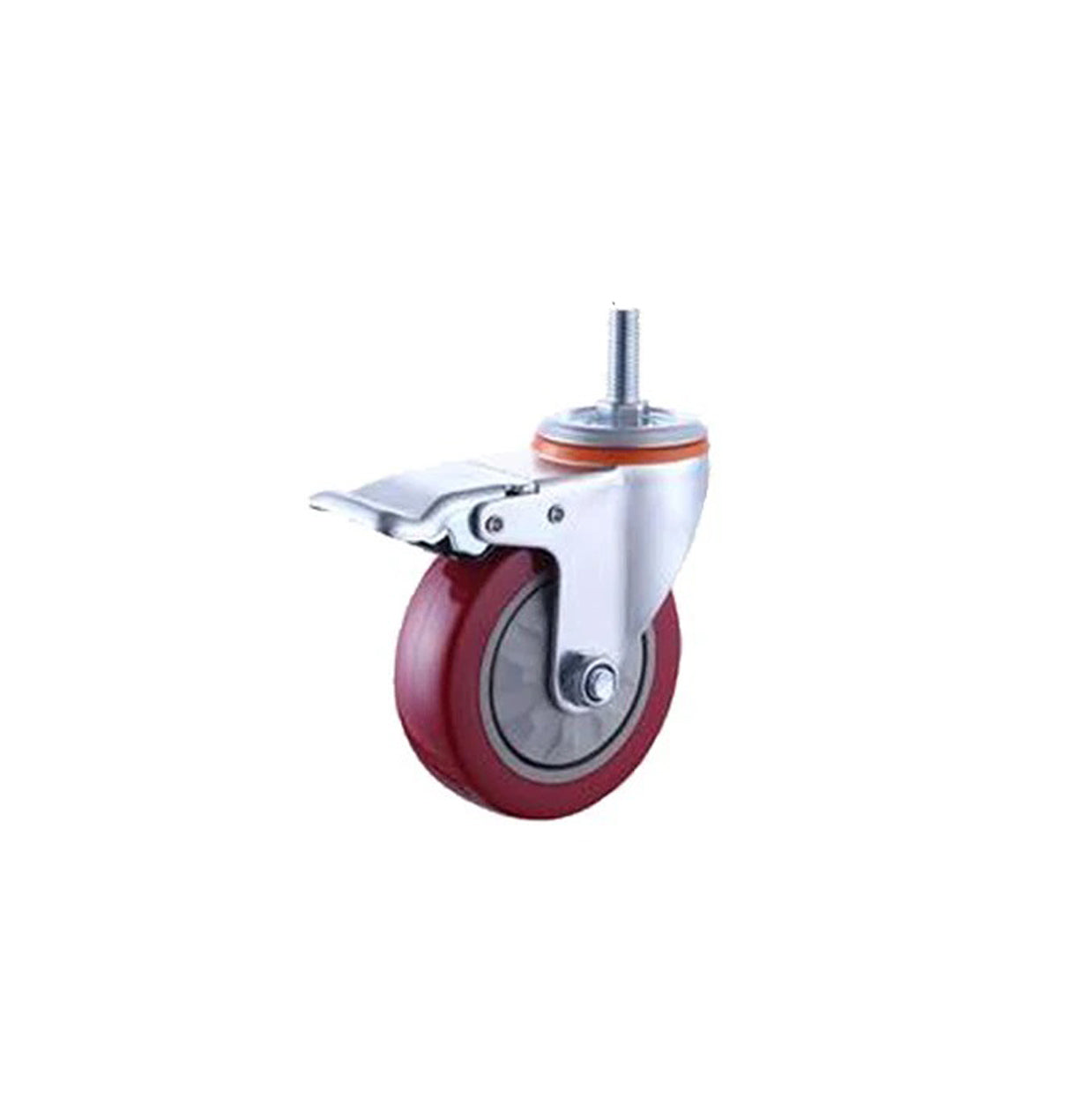

Available in three diameters (75, 100, and 125mm) and five mounting configurations — Fixed, Swivel, Swivel+Brake, Bolt Mount, and Bolt+Brake. PVC is best suited for indoor, smooth floor applications with moderate loads (up to 100kg per wheel).
Why Choose PVC Casters? — Value & Performance
Common Specifications — All Sizes
| Material | PVC (Polyvinyl Chloride) · Maroon red colour |
| Frame Finish | Zinc-plated steel · Silver-grey · Corrosion resistant |
| Dust Cap | Grey plastic · Protects bearings |
| Wheel Width | 32mm (all sizes) |
| Bearing Type | Double Bearing (sealed) |
| Hardness | 85–90 Shore A (firm, durable) |
| Temperature Range | -10°C to +50°C |
| Floor Compatibility | All indoor floors · Non-marking |
| Noise Level | Moderate — standard for hard tread |
| Chemical Resistance | Good — oils, greases, mild solvents |
| Best For | Indoor use · Light to medium duty · Budget projects |
Size & Load Capacity — At a Glance
| Size | Diameter | Height | Core Type | ⚡ Load / Wheel | Note |
|---|---|---|---|---|---|
| 3″ (75mm) | 75mm | 108mm | Solid PVC | 60 kg | Light duty / furniture |
| 4″ (100mm)Best Seller | 100mm | 133mm | Solid PVC | 80 kg | Best value for most uses |

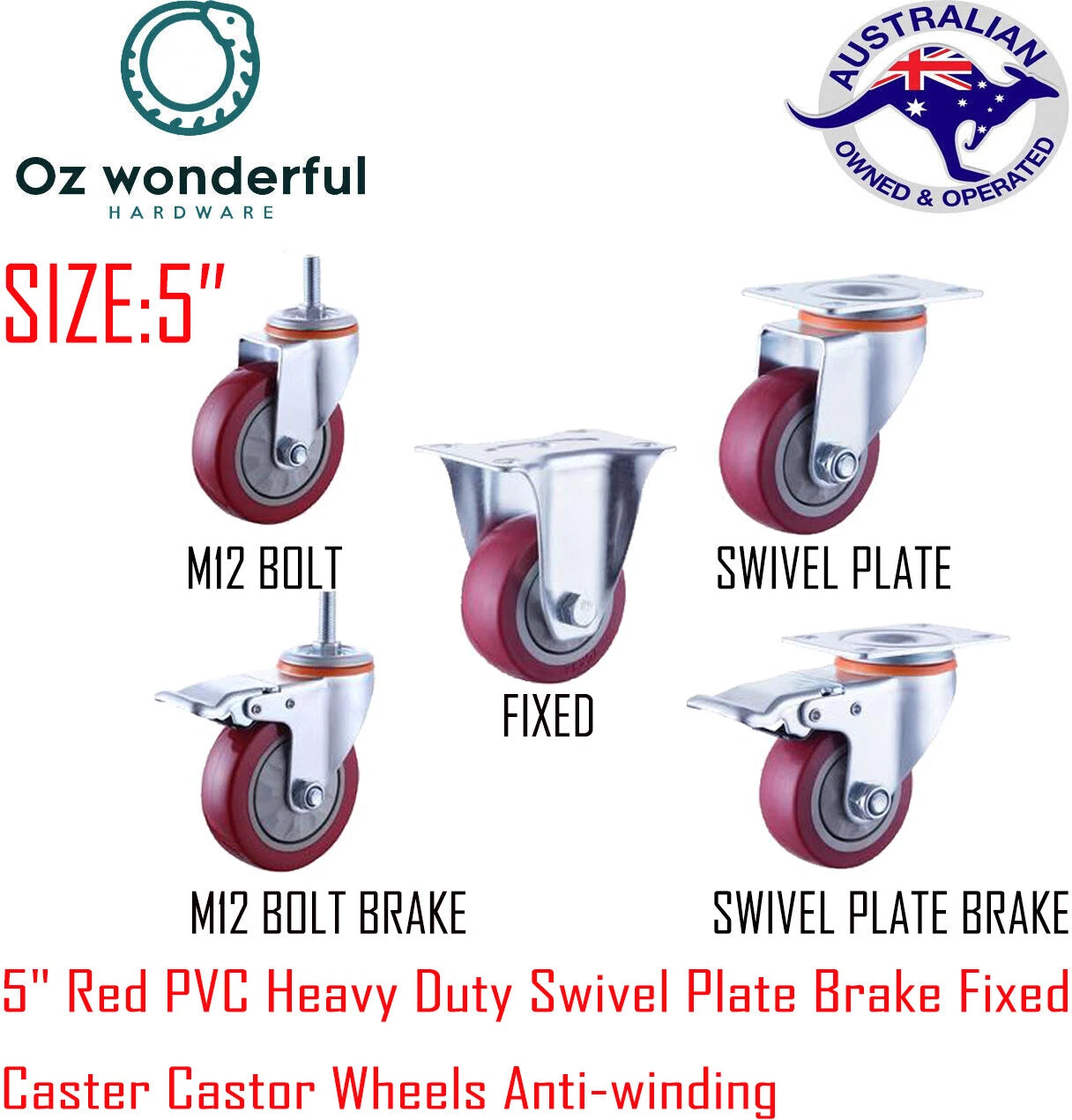

| 5″ (125mm) | 125mm | 155mm | Solid PVC | 100 kg | Heavier indoor carts |
* Load capacity is per individual wheel. PVC has lower load capacity than PU — size up for heavier applications.
Full Configuration Specifications — PVC Maroon Series
| Specification | Fixed | Swivel | Swivel+Brake | Bolt M12 | M12+Brake |
|---|---|---|---|---|---|
| Plate Size | 64 × 92mm | — | |||
| Hole Spacing | 75 × 45mm | — | |||
| Bolt Spec | — | M12 × 30mm | |||
| Frame Finish | Zinc-plated · Silver-grey | ||||
| Dust Cap | Grey plastic | ||||
| 360° Swivel | ✗ | ✔ | ✔ | ✔ | ✔ |
| Brake | ✗ | ✗ | ✔ | ✗ | ✔ |
| Load Capacity | 60 kg | ||||
| Unit Weight | 0.36kg | 0.48kg | 0.56kg | 0.30kg | 0.52kg |
| Specification | Fixed | Swivel | Swivel+Brake | Bolt M12 | M12+Brake |
|---|---|---|---|---|---|
| Plate Size | 64 × 92mm | — | |||
| Hole Spacing | 75 × 45mm | — | |||
| Bolt Spec | — | M12 × 30mm | |||
| Frame Finish | Zinc-plated · Silver-grey | ||||
| Dust Cap | Grey plastic | ||||
| 360° Swivel | ✗ | ✔ | ✔ | ✔ | ✔ |
| Brake | ✗ | ✗ | ✔ | ✗ | ✔ |
| Load Capacity | 80 kg | ||||
| Unit Weight | 0.45kg | 0.58kg | 0.67kg | 0.38kg | 0.62kg |
| Specification | Fixed | Swivel | Swivel+Brake | Bolt M12 | M12+Brake |
|---|---|---|---|---|---|
| Plate Size | 64 × 92mm | — | |||
| Hole Spacing | 75 × 45mm | — | |||
| Bolt Spec | — | M12 × 30mm | |||
| Frame Finish | Zinc-plated · Silver-grey | ||||
| Dust Cap | Grey plastic | ||||
| 360° Swivel | ✗ | ✔ | ✔ | ✔ | ✔ |
| Brake | ✗ | ✗ | ✔ | ✗ | ✔ |
| Load Capacity | 100 kg | ||||
| Unit Weight | 0.52kg | 0.68kg | 0.78kg | 0.45kg | 0.73kg |
Usage Notes — Read Before Installing
Bolt mount: 2 Bolt + 2 Bolt with Brake for tube legs.
Bolt mount: M12 × 25mm stem — measure tube inner diameter before ordering.
Suitable For — Who Uses PVC Casters?
| Application | Recommended Size | Key Benefit |
|---|---|---|
| 🏪 Retail Display / Shop Rack | 3″ or 4″ | Cost-effective · Non-marking |
| 🏠 Home Furniture / Storage Cart | 3″ Swivel | Budget-friendly · Lightweight |
| 📦 Warehouse Trolley (Light Duty) | 4″ or 5″ | Good value for moderate loads |
| 🏭 Light Industrial / Workshop | 4″ + Brake | Chemical resistant · Durable |
| 🏥 Institutional / School Cart | 3″ Swivel+Brake | Good value for large fleets |
| 🍽️ Food Service (Back of House) | 3″ or 4″ | Grease resistant · Easy clean |
| 🔧 Tool Chest / Workshop Equipment | 3″ Swivel+Brake | Stable · Lockable · Affordable |
What is PVC? — Material Explained
PVC (Polyvinyl Chloride) is a versatile, hard-wearing thermoplastic used extensively in caster wheels for light to medium duty applications. At 85–90 Shore A, PVC is significantly firmer than TPR (65–70A) but slightly softer than high-durometer PU, providing a good balance of durability and rolling efficiency.
The maroon red colour is integrated throughout the material — not a surface coating — ensuring consistent appearance even after years of use. PVC offers good resistance to oils, greases, and mild chemicals, making it suitable for workshops, kitchens, and light industrial environments.
The zinc-plated frame provides reliable corrosion protection at an economical price point, while the grey dust caps keep bearings clean. PVC is best suited for indoor, smooth floor applications with ambient temperatures between -10°C and +50°C. For applications requiring higher load capacity, extreme temperature resistance, or ultra-quiet operation, consider upgrading to PU or TPR.
